Shijia es uno de los principales fabricantes mundiales de equipos de procesamiento y combustión personalizados para la industria de extrusión de aluminio. Asimismo, estamos comprometidos con la implementación de la fabricación automatizada para mejorar la productividad y el rendimiento. Entre los diversos productos que ofrecemos, tenemos hornos de precalentamiento de tochos o lingotes de aluminio, máquinas automáticas de carga de tochos/lingotes, hornos de envejecimiento y fusión, hornos de calentamiento de matrices, cizallas hidráulicas para lingotes/tochos y máquinas cortadoras.

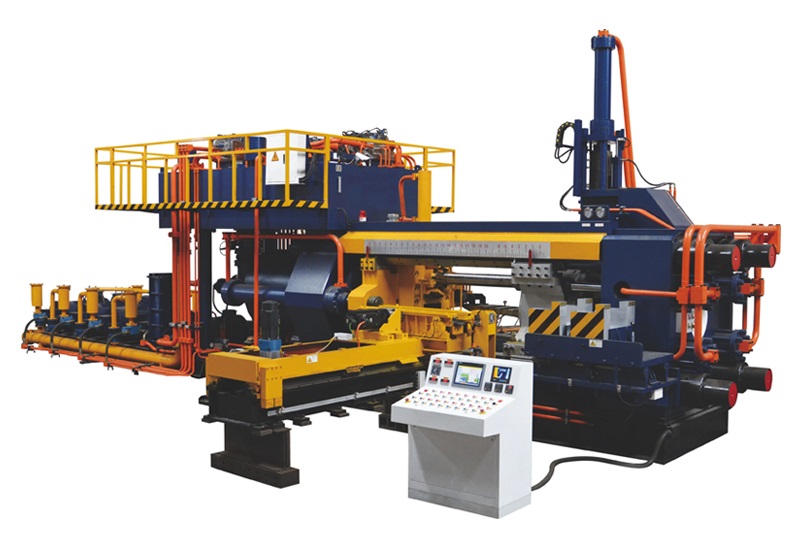

Prensa de Extrusión de Aluminio

Description

As one of the industry’s leaders in extrusion press, we provide aluminum extrusion presses with different tonnage ratings to accommodate both small and large extruded aluminum shapes. Our aluminum extrusion equipment can be used for manufacturing precise extrusions with the industry’s tightest tolerances.
In the aluminum industry, there are direct and indirect extrusion processes available for different applications. Direct aluminum extrusion press is the most commonly used based on the working principle of hydraulic press.

Technical parameters

Model Working Pressure
Mpa 		Plunger Diameter
mm 		Side Cylinder Size

mm 		Size of Aluminum Billet
mm 		Extruder Height
mm 		Outlet Size
(mm) 		Total Power Outside Diameter
(mm) 		Total Weight
(T)
500T
(550UST) 		21 ø 520 ø 125×ø 70 ø 80×380 850 ø 110x110 72 5700×3100×2500 20
600T
(660UST) 		21 ø 580 ø 160×ø 120 ø 90×480 850 ø 110x110 105 6000×3200×2600 24
700T
(770UST) 		21 ø 620 ø 160×ø 120 ø 100×520 1030 ø 120x140 130 7900×2800×3500 38
800T
(880UST) 		21 ø 660 ø 180×ø 140 ø 110×530 1050 ø 130×150 132 8500×3015×3560 42
1000T
(1100UST) 		21 ø 750 ø 200×ø 150 ø 120×600 1095 ø 140×160 195 9660×3070×3900 53
1250T
(1400UST) 		21 ø 840 ø 200×ø 150 ø 140×650 1180 ø 170×200 250 11920×3230×3900 65
1400T
(1540UST) 		21 ø 870 ø 220×ø 150 ø 150×680 1180 ø 180×210 260 11920×3230×3900 70
1650T
(1800UST) 		21 ø 950 ø 220×ø 150 ø 178×800 1530 ø 210×260 315 13400×3580×4900 90
2000T
(2200UST) 		21 ø 1050 ø 250×ø 180 ø 200×800 1680 ø 240×300 350 1650×4000×5100 136
2500T
(2750UST) 		21 ø 1180 ø 250×ø 180 ø 228×1000 2030 ø 280×350 550 17500×6000×6500 250
3000T
(3300UST) 		28 ø 1180 ø 250×ø 180 ø 254×1000 2030 ø 338×480 780 17500×6000×6500 300
4350T
(4785UST) 		28 ø 1350 ø 320×ø 220 ø 280×1000 2280 ø 450×500 960 19500×6900×7500 350
5500T
(6000UST) 		28 ø 1500 ø 380×ø 250 ø 400×1200 2350 ø 490x620 1660 22000×8000×10000 650
8200T
(9000UST) 		28 ø 1780 ø 480×ø 320 ø 485×1750 2585 ø 550×800 2500 28000×9800×11000 800

Features

  • Dead cycle time is shortened, increasing production efficiency.
  • Poligrua is controlled by the servo motor, ensuring billets are fed in a faster, more precise and more reliable manner.
  • Extrusion press container is heated by heating pipes, providing quick heating with high heating efficiency.
  • The elastic deformation is significantly reduced because of a specially designed structure.

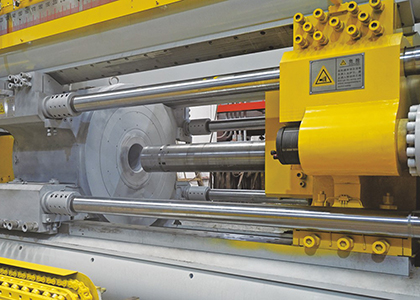

  • The length of tie rod and main cylinder is shortened, increasing the stability and precision of the extruder.
